WINDOWS 10/11 (64-BIT) · PORTABLE BINARY

Fatahna Workbench

Aplikasi portable Windows untuk scan IP & port jaringan, analisa sinyal Wi-Fi (BSSID/dBm), pengujian Modbus TCP, dan monitor topic MQTT.

v1.0.4 STABLE 8.7 MB 2026-10-30

File: fatahna-workbench-v1.0.4.zip

[ DOWNLOAD .ZIP (v1.0.4) ] [ ♥ SUPPORT ]

SHA-256: 206a949bed0afef1f97190a4be91cf479bd2f69868febc24634018f245d723ee

Catatan Rilis: versi 1.0.4
- bug gps

01 / TAMPILAN APLIKASI

PREVIEW

FITUR

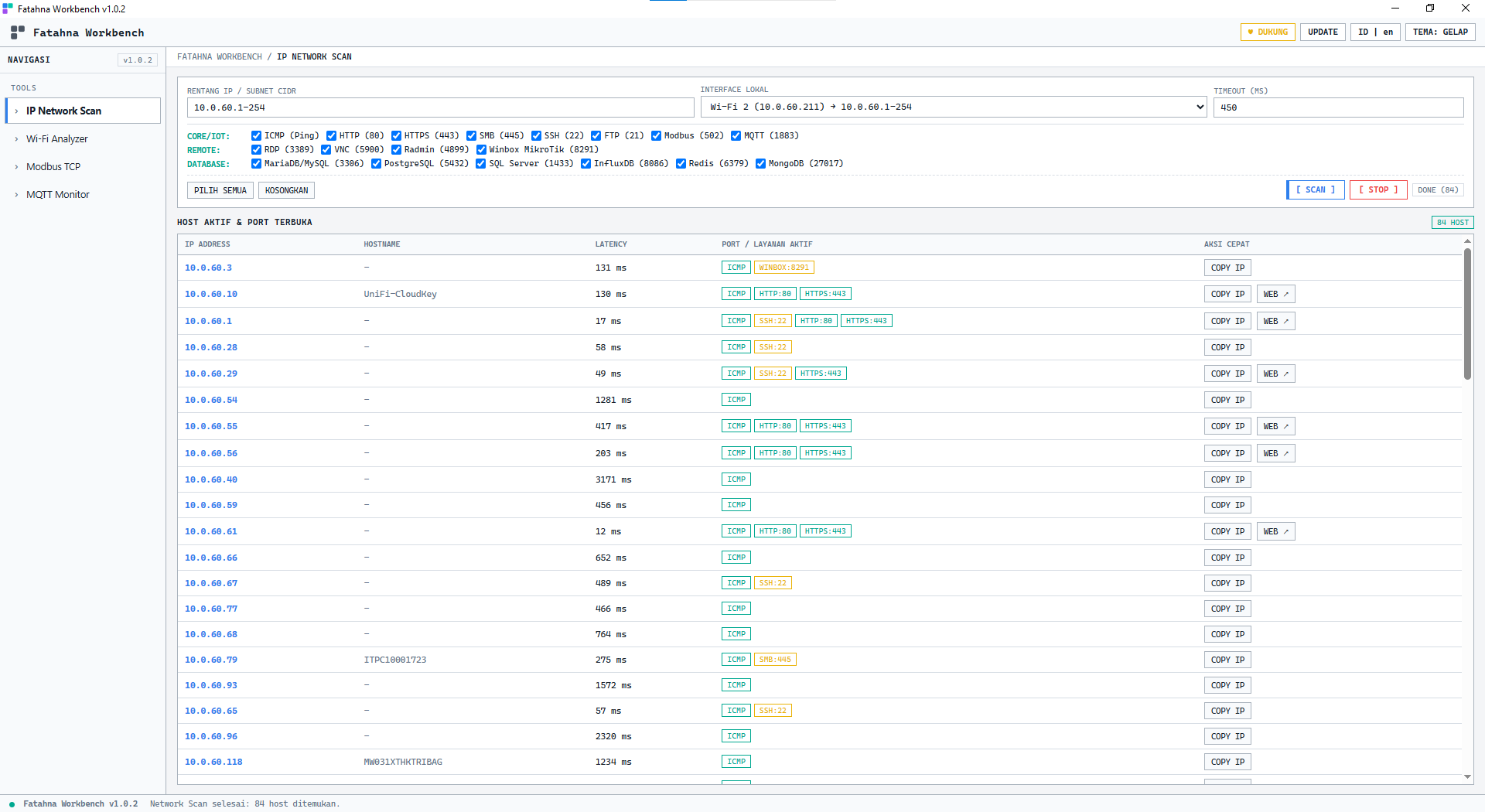

• Target Scan : Rentang IP (192.168.1.1-254) & Subnet CIDR (/24)

• Core & Web : ICMP (Ping), FTP (21), SSH (22), HTTP (80), HTTPS (443), SMB (445)

• Industrial : Modbus TCP (502), MQTT (1883)

• Remote/Router : RDP (3389), VNC (5900), Radmin (4899), Winbox MikroTik (8291)

• Database : MariaDB (3306), PostgreSQL (5432), SQL Server (1433), InfluxDB (8086), Redis (6379), MongoDB (27017)

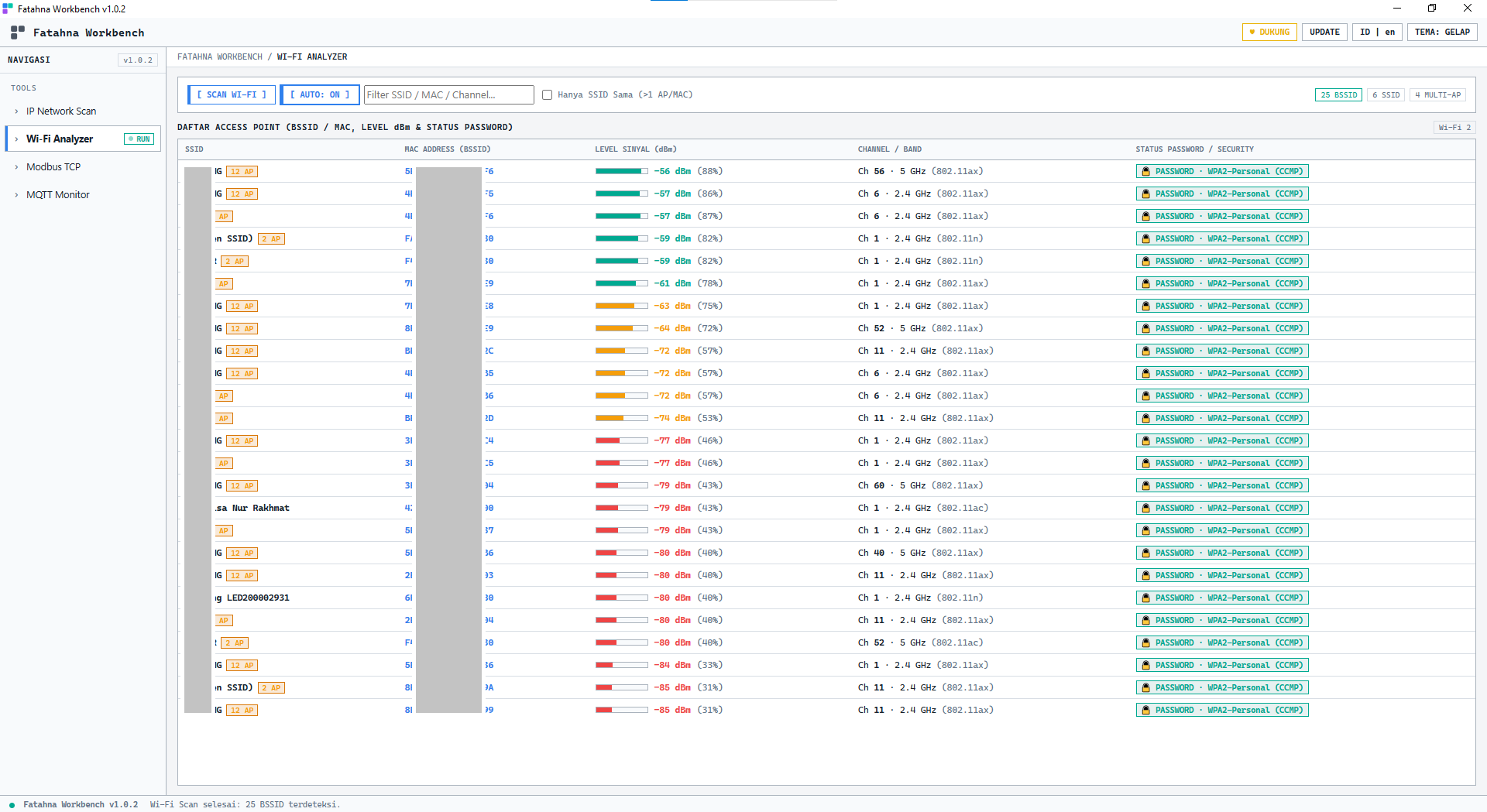

• Multi-AP Scan : Deteksi beberapa Access Point dengan SSID yang sama

• Identitas AP : MAC Address (BSSID) per radio & filter cepat

• Level Sinyal : Estimasi nilai dBm & persentase kualitas sinyal (%)

• Kanal & Pita : Channel, Band (2.4 GHz / 5 GHz), Radio (802.11n/ac/ax)

• Keamanan : Status Password (WPA2/WPA3/Enterprise vs Open)

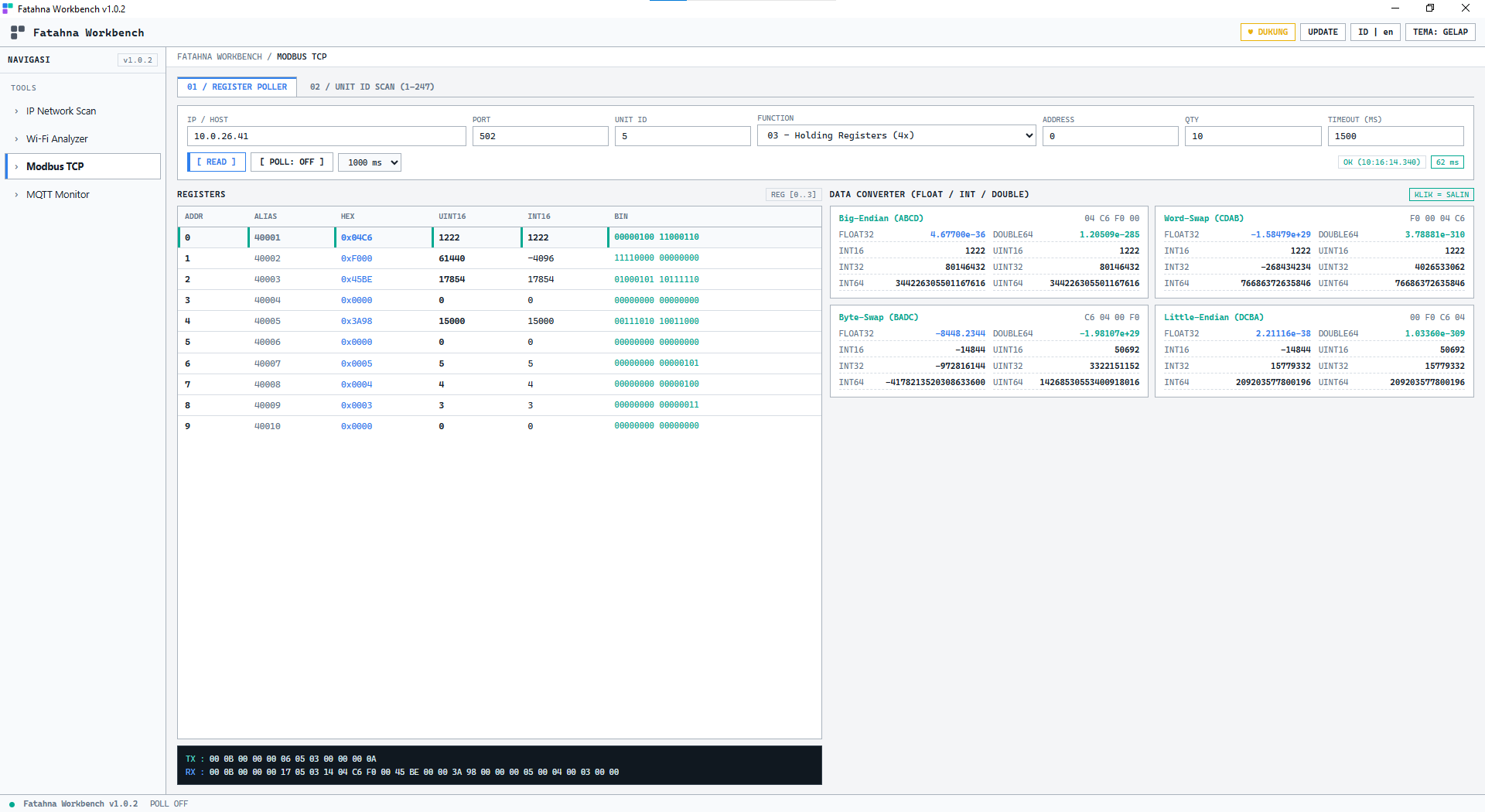

• Function Code : 01, 02, 03, 04

• Mode Baca : Single Read & Live Poll (500–5000 ms)

• Unit ID Scan : Rentang Slave ID 1–247

• Tipe Data : INT16, UINT16, INT32, UINT32, INT64, UINT64, FLOAT32, DOUBLE64

• Endianness : ABCD, CDAB, BADC, DCBA & Raw ADU Hex

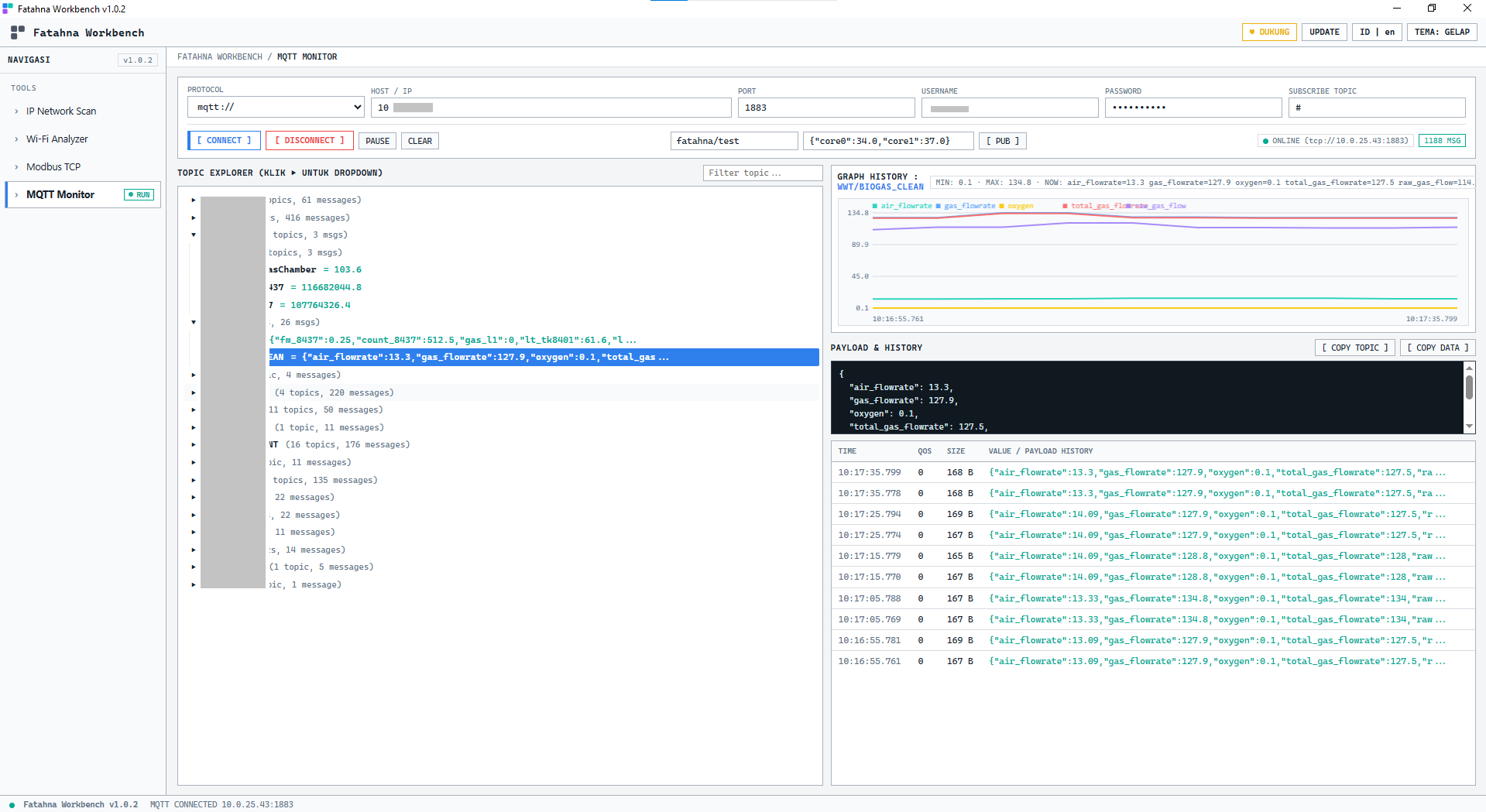

• Protokol : mqtt://, mqtts://, ws://, wss://

• Topic Tree : Hierarki Topic Dropdown (▶/▼) & Counter Pesan

• Graph History : Real-Time Line Chart untuk payload angka & JSON numerik

• Publisher : Quick Publish & Payload History Inspector

• Multi-Bahasa : Indonesia (ID) & Inggris (EN) + Auto-Update
